Extension Ladder

Design No.AL-786/8816

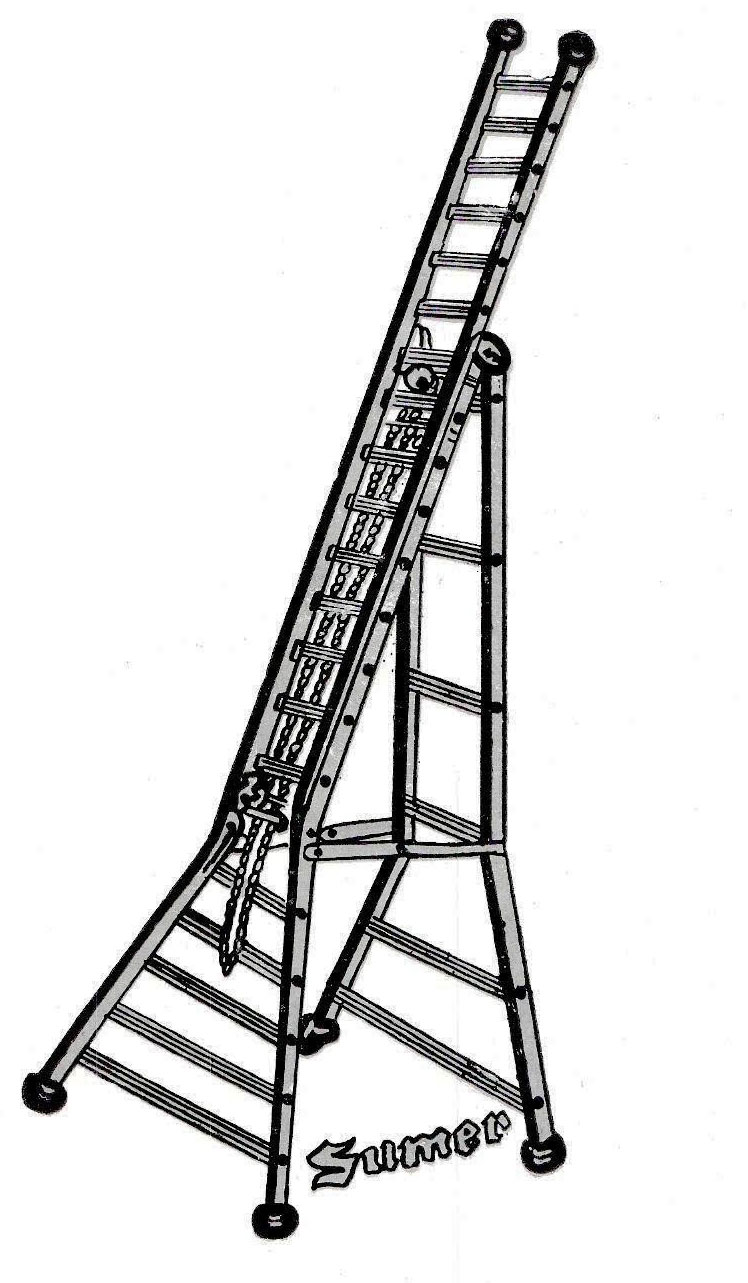

ALUMINIUM SELF SUPPORTING EXTENSION LADDER
  • Description: Aluminium self supporting extension ladders made out of high tensile aluminium ladder along with lock pulley , rope fitted with locking device and rubber pads at bottom and upper ends.
  • Side: Al. ‘C’ Shape section of size 66.6 x 31.7mm.
  • Step: 63mm wide one piece step edging Non- Slippery corrugated on front and 25mm dia corrugated non slippery on back.

  • OPTIONAL
  • Side: Al. ‘Channel’ Shape section of size 66.6 x 31.7mm.
  • Step: 25mm dia Non Slippery corrugated Tubing on front and 25mm dia corrugated non slippery on back.
  • All Aluminium Raw Material used(Alloy & Temper) confirming to(IS-733-1975)(latest).
  • Description: HEIGHT AVAILABLE FT. (Mtrs.).

  • Closed Height FT. (Mtrs.)
  • 10’(3.04).
  • 12’(3.66).
  • 14’(4.27).
  • 16’(4.88).
  • 18’(5.49).
  • 20’(6.09).
  • 24’(7.32) .

  • Extended Height FT. (Mtrs.)
  • 17’(5.18).
  • 20’(6.09).
  • 24’(7.32).
  • 28’(8.54).
  • 32’(9.76).
  • 36’(10.98).
  • 40’(12.19).
  • 44’(13.41).

  • Other Heavy Duty options are also available
    FRP Ladders for same design are available

Design No.AL-100/8809

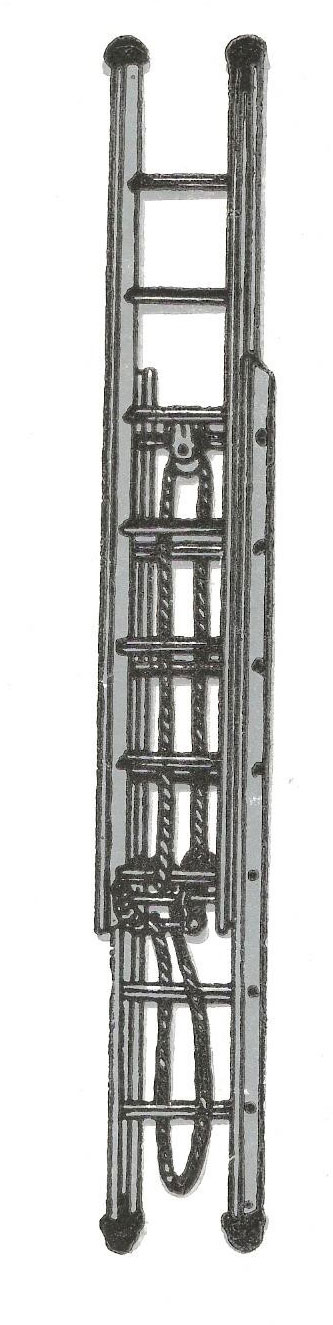

ALUMINIUM EXTENSION LADDER
  • Description: Aluminium wall supporting extension ladder(Fire Brigade Type) made out of AL. “C” section and steps of AL. Corrugated tubing fitted with heavy duty safety lock, Pulley, rope and rubber pads at bottom and upper ends.
  • Side: Al. ‘C’ Shape section of size 66.6 x 31.7mm.
  • Step: 25mm dia Non- Slippery corrugated Tubing.

  • OPTIONAL
  • Side: Al. ‘Channel’ Shape section of size 90 x 30mm.
  • Step: 63mm wide one piece step edging Non- Slippery corrugated.
  • All Aluminium Raw Material used(Alloy & Temper) confirming to(IS-733-1975)(latest).
  • Description: HEIGHT AVAILABLE FT. (Mtrs.).

  • Closed Height FT. (Mtrs.)
  • 10’(3.04).
  • 12’(3.66).
  • 14’(4.27).
  • 16’(4.88).
  • 18’(5.49).
  • 20’(6.09).
  • 24’(7.32) .
  • 20’(6.09) In Three Folds.

  • Extended Height FT. (Mtrs.)
  • 17’(5.18).
  • 20’(6.09).
  • 24’(7.32).
  • 28’(8.54).
  • 32’(9.76).
  • 36’(10.98).
  • 44’(13.41).
  • 50’(15.24).

  • Other Heavy Duty options are also available
    FRP Ladders for same design are available
