Design No. AL-200

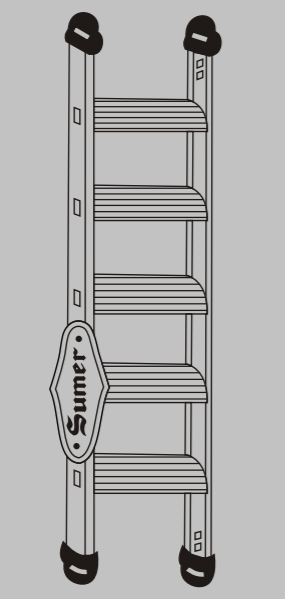

ALUMINIUM WALL SUPPORTING SINGLE LADDER WITH FLAT STEPS
Aluminium wall supporting single ladder made out of AL. ‘C’ section of size 66.6 x 31.7 mm and one piece flat step of size 63 mm. Ending fitted with rubber pads at bottom and upper ends.
Optional on Extra Cost- Sides : 75 x 35 mm and Steps 63 mm
- Available in all sizes 3 Ft. To 15 Ft
Design No. AL-8817

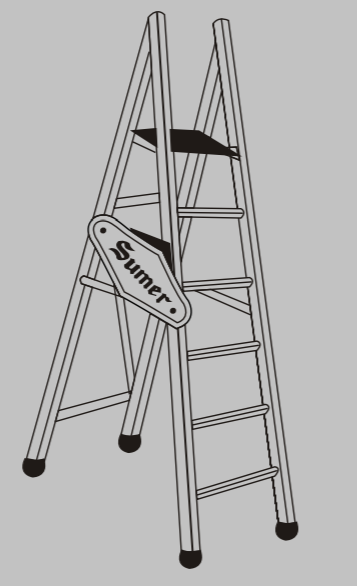

ALUMINIUM DOUBLE STEP LADDER
Aluminium Double Step Trestle ladder made out of AL-’C’ Section of size 66.6 x 31.7 mm and wide steps of size 63 mm fitted and auto folding Platform fitted 1 Ft. Below from the Top with hinge and Rubber pads at ower bottom ends
- Available in all sizes 3 Ft. To 15 Ft
Design No. AL-8815

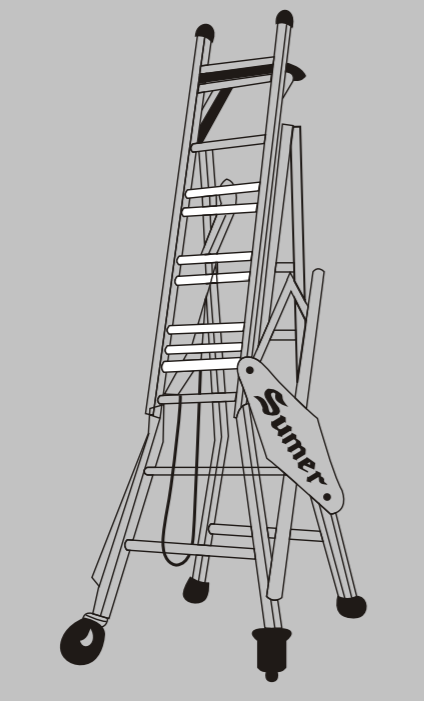

ALUMINIUM TELESCOPIC TOWER LADDER
Aluminium Telescopic Tower ladder made out of AL. ‘C’ section of size 66.6 x 31.7 mm and steps of Alu. Round Corrugated tubing of size 25 mm with two wheel and Platform on Top.
Sizes Avaliable
| Closed Height FT. (Mtrs.) | Extended Height FT. (Mtrs.) |
| 3.66mtrs. (12’) | 6.096mtrs. (20’) |
| 4.27mtrs. (14’) | 7.32mtrs. (24’) |
| 4.88mtrs. (16’) | 8.54mtrs. (28’) |
| 5.49mtrs. (18’) | 9.76mtrs. (32’) |
| 6.096mtrs. (20’) | 10.98mtrs. (36’) |

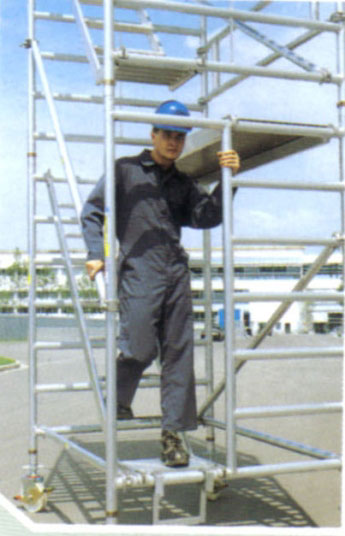

Narrow Width Scaffolding on Trolley

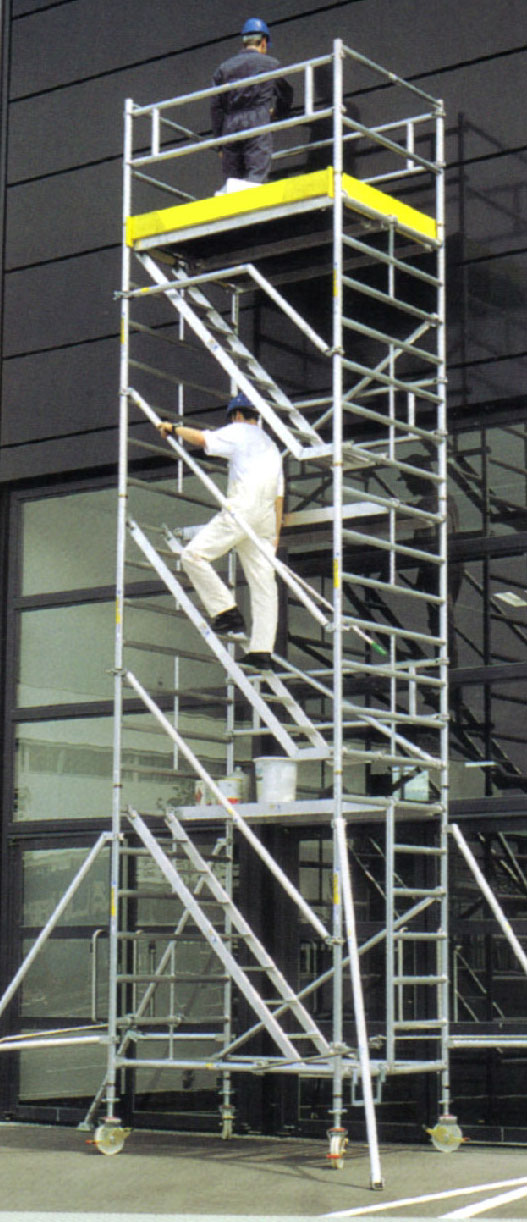

Double Width Scaffolding with interval Ladders & Trolley

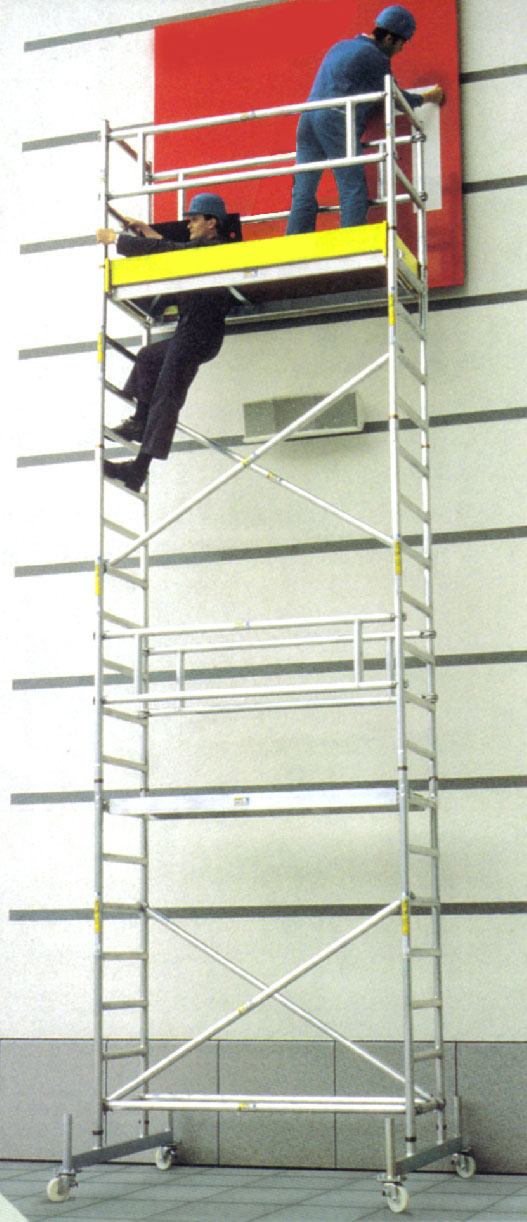

Door Enterance

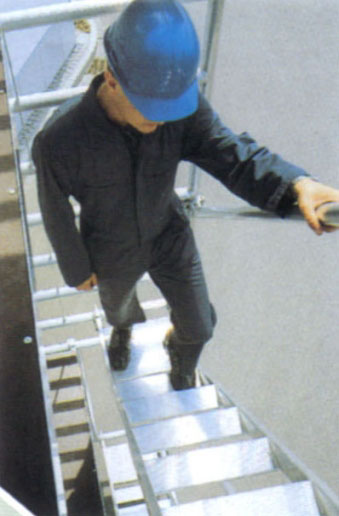

Easy Climbing Steps

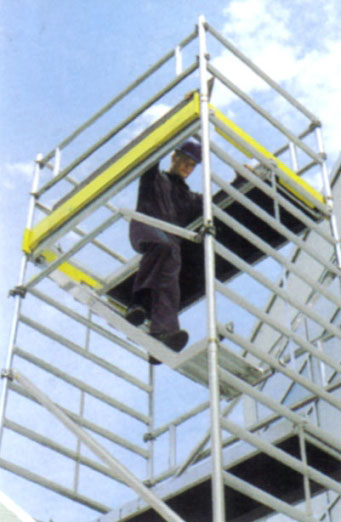

Platform Assembly, Way through Trap Door to Ladder
